Hacking the mud ​

Turn on Electroheist, get your hacking gloves and get ready to kernel.hardline! It's about to get real!

You are now FINALLY fully ready to read the state of the game. All the theory about mono is behind. If you have proper methods for reading objects and fields, this part will be a breeze. You do have proper methods... right?

Roadmap:

  1. Decompile the game
  2. Find all Window objects
  3. Get the shell window object
  4. Find and read the string queue
  5. Get the kernel object and read game state

Decompile the game ​

You can use any tool but I'd advice you to use dotPeek

Find a Core.dll file for the game.

  • Windows C:\Program Files (x86)\Steam\steamapps\common\hackmud\hackmud_win_Data\Managed\Core.dll
  • Linux \.steam\debian-installation\steamapps\common\hackmud\hackmud_lin_Data\Managed\Core.dll

(path can be slightly different)

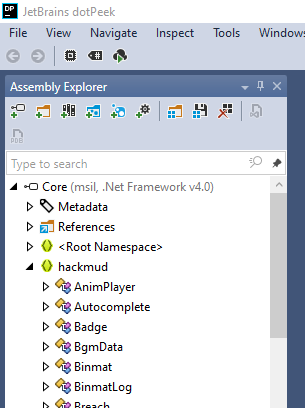

Open the Core.dll assembly in dotPeek. you should see something like this.

a

Reading the shell ​

As described on previous page, find all Window objects. Then read the property labelName of each one. You are interested in window with name shell. You can also grab chat one if you want to.

Get the field with the name output.

This object has a single obfuscated GENERICINST field. This field is our Queue<String> object. The text of the hackmud shell is stored in this object.

Get these values from queue object:

  • _head - Index of the head of the queue
  • _tail - Index of the tail of the queue
  • _size - Size of the Queue
  • _version - Version. Every time the queue changes this number gets incremented
  • _array - String array where each line is a line in a hackmud shell

The newest line in the shell is stored in array[tail] and the oldest one in array[head]

Note that it is a Queue array. head and tail end constantly shift. It also wraps around the queue, so if the queue length is 2048 and tail is is at 1900 and head is at 100, you'll need to read from 1900 to 2048 and from 0 to 100.

Also note that reading the entire queue takes quite a bit of time so there are a couple of optimizations that you can make.

  1. Only read the queue when the version changes.
  2. Only read the area between head and tail
  3. Keep track of read lines and only read new ones.

But for now you can just read the entire object and move on. Optimize later if you have to.

Now save the pointer to this queue object and read it every time you need to get the contents of the shell.

Getting the state of the game ​

Another cool field that you can look at is window.kernel. It has a variety of useful things in it

kernel.mainParser.is_processing is a boolean value that tells if the hackmud client is currently processing a command. You can't enter anything during this period

kernel.hardline.hackmodeCountdown.timer.current is a hardline remaining time.

kernel.hardline.instructions.m_Text is a string containing some text that appears on the screen when you enter the hardline.

Find all enums of hardline object. You can do that by looking for VALUETYPE fields. All their names are obfuscated but the enum values are not. Look for 2 enums that contain fields Mapping and ToHardline. They contain the game state which can be used to know if you are currently in hardline or on the "dial ip" screen.

Conclusion ​

And that is it! Now just put all of this in a while true loop and you have yourself a mem reader! 🎉🎉🎉

There are other things you can read as well. Get creative and dive deeper into the source code to find other useful things if you want to. But personally I think the shell contents and game state is all you need.

There's one last thing I want to say...
